SPECIFICATION
| Racking type | Drive in racking | ||
| Load capacity | 500-1000kg each pallet | ||
| Size | Customized | ||
| Pitch | 75mm | ||
| Surface treatment | Powder coated | ||
| Application | big batch and less variety cargos, like food, tobacco and freezer | ||
Features
■ Last-in-first-out and First-in-first-out storage system.
■ Create to offer maximum storage capacity by using up only minimum space.
■ Adjustable storage height and depth.

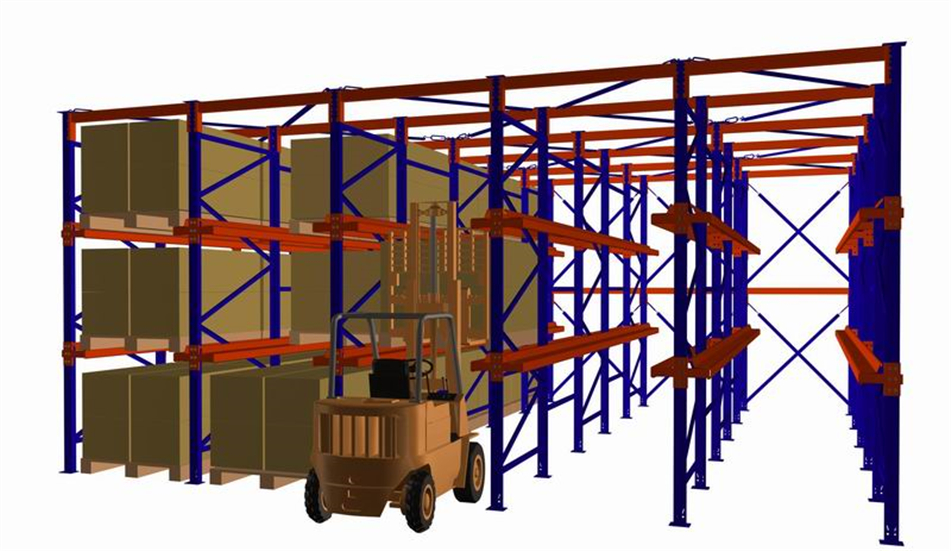

Drive in racking can be set up to 8 pallets depth and 10m high. But the most recommended design is 4-5 pallets depth and 4 levels high for safe loading/unloading and convenient management.
■ Smooth pallet rails – for safe, snag-free load bearing.
■ Create to offer maximum storage capacity by using up only minimum space.
■ Adjustable storage height and depth.
Drive in racking can be set up to 8 pallets depth and 10m high. But the most recommended design is 4-5 pallets depth and 4 levels high for safe loading/unloading and convenient management.
■ Smooth pallet rails – for safe, snag-free load bearing.
- First in last out (FILO)
- First in first our or first in last out (FIFO/FILO)
First in last out (FILO)
The First-in, Last-out (FILO) principle means individual pallets can be accessed one-by-one from the front of the rack.
First in first our or first in last out (FIFO/FILO)
Both side is available for pallet in or out.
